Full Automated Chemistry Analyzer Chemia 220 Pro
Download resources
Talk to our
clinical chemistry product specialists
+2348037219600 +2348038032647
Click to Call
Compatible Reagents:
-
Sicuro Products: All Chemistry Reagents
-
Others: None

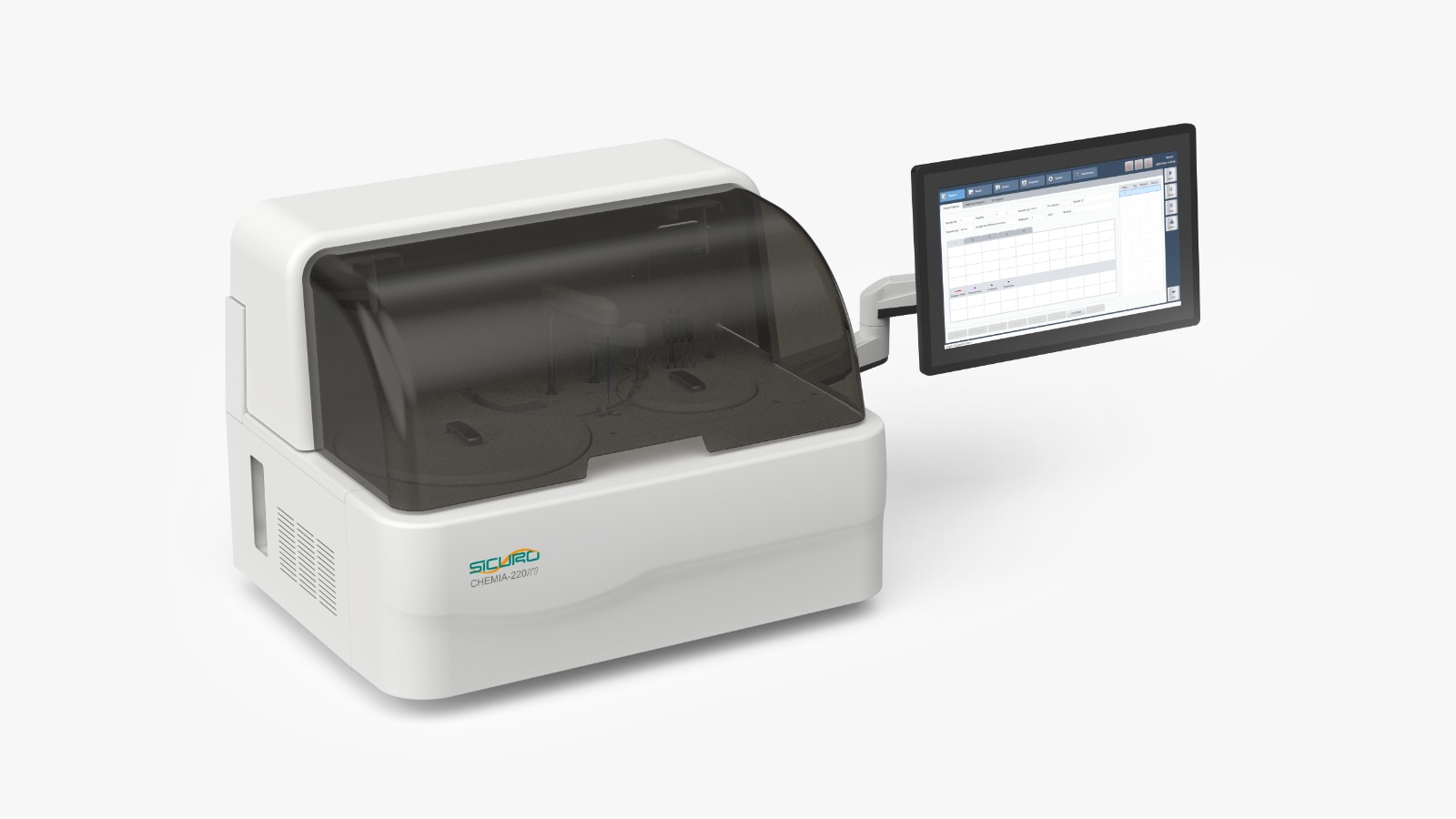

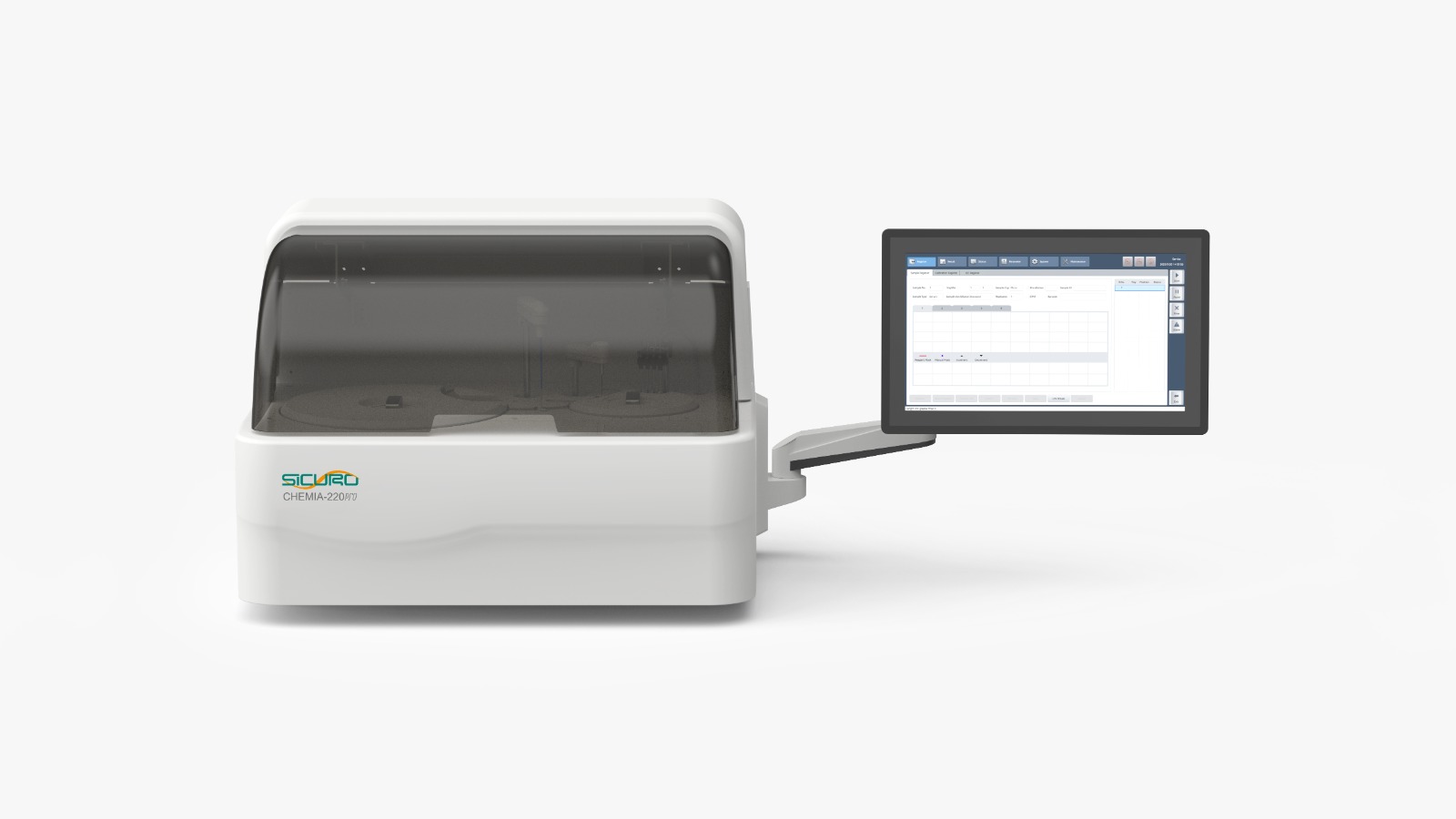

The CHEMIA 220Pro is a high precision fully automated benchtop chemistry analyser with compact design, efficient, and high-end features designed for mid to high volume labs. Its operation is based on small batch sample management module equipped with an integrated cooling system making assessment more accurate, reliable and flexible. The analyser is well suited for routine testing and demanding laboratory environments, including hot climatic regions such as Africa.
Technical Specification
Sample / Reagent Unit
Sample / Reagent Tray40 sample positions outside, support bar code reader, auto-dilution, STAT sample priority; 40 reagent positions in center, 40 reagent positions inside, 40 reagent positions can support bar code reader, 24 hours uninterrupted refrigeration
Sample / Reagent Needle1 sample probe, liquid level detection, Vertical collision protection, inventory checking, clog detection (optional)
Sample Volume2~30 µL, step by 0.1 µL
Reagent Volume20~300 µL, step by 1 µL
System Function
ThroughputConstant speed, 200 Tests/Hour
MethodologyOne-point, 2-point, End point, Fixed time, Kinetic
Minimum Reaction Volume150 µL
Water Consumption<1.8 L/Hour
PrincipleColorimetry, Turbidimetry
Optical System
Light SourceHalogen lamp
Life of Light SourceAverage of 2000 hours
Wavelength8 wavelengths (340~700 nm)
Reaction System
Reaction Tray44 reaction cuvettes, new amorphous optical plastics reaction cuvettes, perfect transmittance
Diameter of Reaction Cuvette6 mm
Reaction Volume150~330 µL
Temperature37 ± 0.1°C
Cuvette Washing2*4 automatic washing (without alkaline)
Wastewater TreatmentHigh and low concentration split
Cal & QC
Calibration ModesK factor, Two-points linear, Multi-points linear, Spline, Line graph, Exponential, Logit-Log 3P, Logit-Log 4P, Logit-Log 5P
QC RulesWestgard, L-J
Software
Operating SystemWindows 10, Windows 11 Professional edition
System ConnectionTCP/IP network connection
Built-in Bar Code Reader (optional)Applicable to sample and reagent bar code. Code systems: Codabar, ITF (Interleaved Two of Five), Code128, Code39, UPC/EAN, Code93
Other
Power Supply100-240V, 50/60 Hz
Dimension745 x 540 x 530 mm
Weight50 kg
Intelligent- Reagent inventory monitoring
- Auto reagent refrigeration
- Accurate probe pipetting technique
- Auto probe washing reduces carry-over
- Simultaneous dual-wavelength measuring
Easy- Up to 120 tests per hour
- Fast start-up and shutdown process
- User-friendly software
- Removable reagent disc
- Auto cuvette washing station
Economical- Minimum reaction volume 150 µl
- Reusable cuvettes
- Few consumables
- Low water consumption
- Halogen lamp With a long lifespan
- Optional reagent closed system.
Integrated- Small footprint on the desk
- Big reagent and sample compartment
- Built-in computer with touchscreen
- Built-in thermal printer
- Complete solution with reagents
- Power full data transmission with USB, Ethernet, RS232
