Full Automated Chemistry Analyzer Chemia 100C
Download resources
Talk to our
clinical chemistry product specialists
+2348037219600 +2348038032647
Click to Call
Compatible Reagents:
-
Sicuro Products: All Chemistry Reagents
-
Others: None

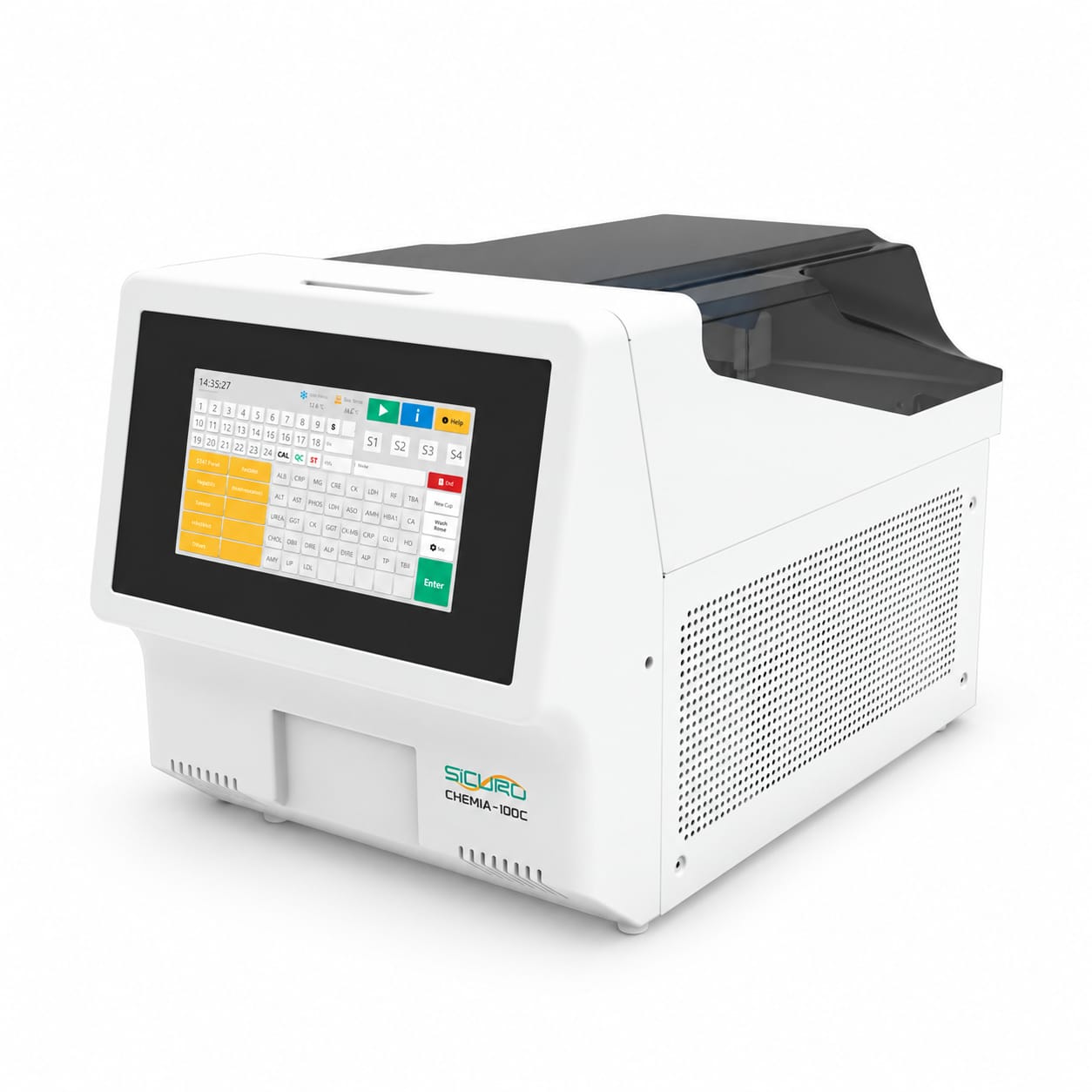

The CHEMIA 100C is a fully automated benchtop chemistry analyser with compact design and efficient features, designed for small to medium volume labs. Its space-saving design delivers reliable performance and automated functions while optimizing laboratory workflow. Equipped with an integrated cooling system, the analyser is well suited for routine testing and demanding laboratory environments, including hot climatic regions such as Africa.
Technical Specifications
Sample & Reagent
Sample ModeRandom Access, STAT Sample Priority
Sample Volume2~30 µL, step by 0.1 µL
Sample / Reagent ProbeOne probe for sample and reagent with Liquid Level Detection, Vertical Collision Detection and reagent volume real-time monitoring function
Sample Disk27+4 Sample Positions
Sample TubePrimary tubes and sample cups
Reagent VolumeR1: 150-350 µL, R2: 20-300 µL, step by 1 µL
Reagent Disk54 Reagent Positions, 24-hour onboard cooling (4~15°C)
Reagent Bottles30 ml / 20 ml / 6 ml
System Function
ThroughputConstant speed, 150 Tests/Hour
MethodologyEnd point, Fixed time, Kinetic
Minimum Reaction Volume150 µL
Water Consumption<1.8 L/Hour
PrincipleColorimetry, Turbidimetry
Optical System
Light SourceLED light source
Wavelength8 wavelengths (340~700 nm)
Reaction System
Reaction Cuvettes40 cuvettes, UV plastic cuvettes
Reaction Temperature37±0.1°C
HeaterMetal thermostat for reaction disk
Cal & QC
Calibration ModeOne-point linear, Two-point linear, Multi-point linear, Logit-4P, Logit-5P, Spline, Exponential, Polynomial
QC RuleWestgard multi-rule, Cumulative sum check, Twin plot
Software
Operating SystemWindows 7 / 10 / 11
LIS InterfaceBi-directional LIS Interface (HL7)
PC InterfaceUSB / RS232 / LAN (Optional WIFI)
Other
Dimension350 (W) x 390 (H) x 600 (L) mm
Power SupplyDC 24V 10A
Net Weight27 kg
Intelligent- Reagent inventory monitoring
- Auto reagent refrigeration
- Accurate probe pipetting technique
- Auto probe washing reduces carry-over
- Simultaneous dual-wavelength measuring
Easy- Up to 120 tests per hour
- Fast start-up and shutdown process
- User-friendly software
- Removable reagent disc
- Auto cuvette washing station
Economical- Minimum reaction volume 150 µl
- Reusable cuvettes
- Few consumables
- Low water consumption
- Halogen lamp With a long lifespan
- Optional reagent closed system.
Integrated- Small footprint on the desk
- Big reagent and sample compartment
- Built-in computer with touchscreen
- Built-in thermal printer
- Complete solution with reagents
- Power full data transmission with USB, Ethernet, RS232
